PLANT HIRE Services

We supply all types of drum rollers for daily hire

Based in Spennymoor...we can deliver Tel: 07908498895

TELEHANDLER for Hire

The JCB 520-40 is another compact, manoeuvrable Loadall. It has a longer footprint than the 516-40, but boasts improved lifting capacity and lift capacity at reach.

4 equal sized wheels improve tractive effort for excellent loader performance, while soft ground flotation and ground clearance are first class. Permanent 4-wheel steer, together with a compact machine size, means an exceptionally tight turning circle for great manoeuvrability and handling in small building sites.
Narrow lateral overhang for walls and curbs.

ABOUT OUR TELEHANDLER...

The JCB 520-40 Loadall has a spacious, safe, side-entry cab. Visibility is superb and a large opening door allows for easy access, all of which is just the start; we invest in the compact telescopic handler operator’s comfort because it equates to real, measurable improvements in day-long productivity.

This means keeping noise levels low and building everything around the operator, from a fully adjustable suspension seat, mobile phone holder and intelligently placed air vents, to ergonomic control switches on the front console.

Controls on the JCB 520-40 small telescopic handler are intelligently grouped for instinctive use, with hydraulic and transmission controls laid out for quick, safe and precise operation. The load moment indicator, providing progressive read out of forward stability, is at eye level for easy checks and maximum safety.

Order by Email E: hire@b-aminidigger.co.uk

Order by phone : Tel: 07908498895

JCB TELEHANDLER 520-40 (from £100/day)

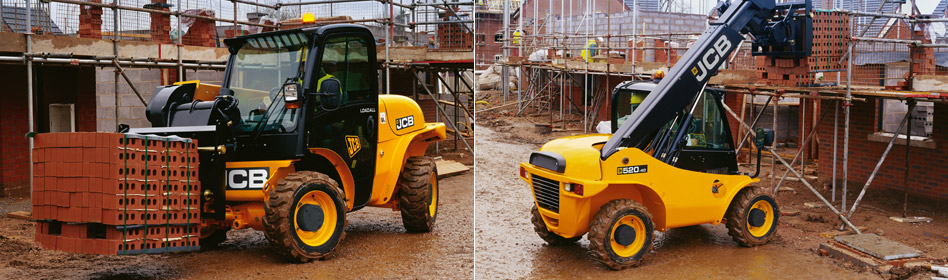

JCB 520-40 telehandler for hire in Billingham

Maximum Lift Capacity: 2000KG
Maximum Lift Height 4m
Maximum Engine Power: 36.3kW

PDF Specification

MACHINE SPECIFICATION

  • Engine: 36.3 kW (50 hp) 2.2 Litre Diesel Engine
  • Hydrostatic drive transmission 20 kph
  • 4WD & 4WS
  • 2000 kg capacity to full height
  • 4 metres lift height
  • Reverse alarm
  • Full road lights / reverse lights / rear foglights/ rotating beacon/ exterior mirrors/ recovery hitch
  • 10 X 16.5 12 ply solideal wheels & tyres
  • Manual hand controls with auxiliary
  • Fully glazed cab with fresh air heater
  • Fabric suspension seat
  • Tool carrier
  • Floating fork carriage & 1067mm forks

MANOEUVRABILITY AND PERFORMANCE

The JCB 520-40 Loadall uses a combination of 2 axles and a hydrostatic transmission and four-wheel steer for superb manoeuvrability.

Good ground clearance and four-wheel drive mean this compact telescopic handler can make excellent progress in any conditions or terrain. Add a hydrostatic transmission for easy operation, infinite speed variations and great fuel efficiency, and you have truly versatile performance and productivity.

Further productivity

  • Narrow (and therefore highly manoeuvrable) chassis
  • 4-wheel steer for superb manuevrability
  • Superb visibility
  • Transmission disconnect on the brake pedal diverts engine power for improved hydraulic cycle times
  • Parallel lift gives excellent load retention

Have a Question? contact us now
